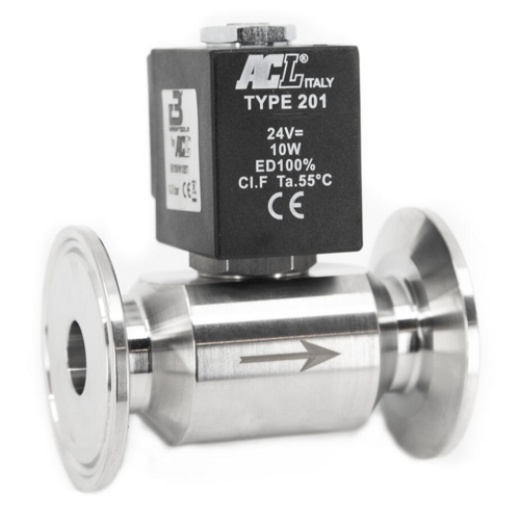

Solenoid valve made from stainless steel. Designed for glycol, water and air/co2.
TC3mm ports in both ends for maximum flexibility.
Coil and plunger Italian-made by ACL.
The valve can easily ble disassembled and cleaned.
Coil has DIN 43650 Type A connector (not included).
Specifications:
- Ports: TC 1.5" / TC 1.5"
- Operation: NC (normally closed)
- Power supply: DC24V, 10W
- Orifice: Ø4.5mm
- Pressure rating: Max 3 bar / 43 PSI
| Item # | BT1301 |
| Shipping | |
| Availability | In Stock |
| Weight | 2 LBS |
