Tri-Clamp Pressure Lid For Kegmenter Fermentation Keg | 4" X 2" T.C

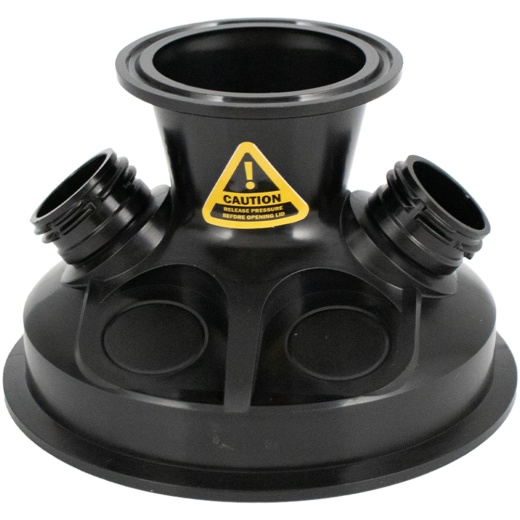

Upgrade your Kegmenter Fermentation Keg with this 4" Tri-Clamp Lid from KegLand. Add yeast, hops or even take samples from a wine thief from the top and not have to remove the entire lid.

This particular lid was designed to address the growing desire to dry hop without exposing the batch to oxygen from opening the lid. By using this lid in conjunction with the FermZilla 2" Butterfly Valve and Hop Bong Kit, you will be able to purge CO2 into the tube and expel all the oxygen inside it and dump freely into the vessel. The lid features closed ports that can be drilled out to install optional accessories like the Temp Twister Cooling Coil and a Thermowell.

The plastic lid also allows for improved KegLand RAPT Pill WiFi reading compared to the Kegmenter fully encasing the Pill in stainless steel.

Due to the large 4" Tri-Clamp diameter, it is difficult to get higher pressures without leaking, therefore we suggest using the lid up to 21 psi.

If you do not already own any of the Hop Bong fittings listed below, the Kegmenter Hop Bong Pressure Pack is also available as a complete kit.

Undrilled Ports (for optional accessories):

• Thermowell Port (see below for FermZilla Thermowell kit)
• (2) Temp Twister Ports

Please Note: Temp Twister will need to be bent on a 20° Angle in order to fit on the curved lid and align vertically in the tank.

Hop Bong
To use the Pressure Lid with the 2" Hop Bong, we recommend the following fittings if you do not have them already:

• 2 x Red Ball Lock Cap (FE13)
• 1 x Yellow Ball Lock Cap (FE146)
• 1 x 4" Tri-Clamp, 3 Segment Clamp (H734)
• 1 x 4" Tri-Clamp Seal (FF401)
• 3 x 2" Tri-Clamp (FF20)
• 3 x 2" Tri-Clamp Seal (FF201)
• 1 x 2" Butterfly Valve (FE198)
• 1 x 2" Hop Bong (FE202)
• 1 x 2" Hop Bong Cap (FE204)
• 1 x PCO1881 PRV Cap (KG523)
• 1 x Red 35 psi PRV (FE101C)

Please note: The last product photo is an example image of what the lid looks like fully fitted out with the Hop Bong and other accessories that are not included with the lid.
