- 4 Built-in pumps and digital controllers
- Control multiple fermentation temperatures independently
- Fill with 20% glycol solution for optimal chilling performance
- Cold crash with good insulation
- Perfect complement to BrewBuilt X-Series Conicals

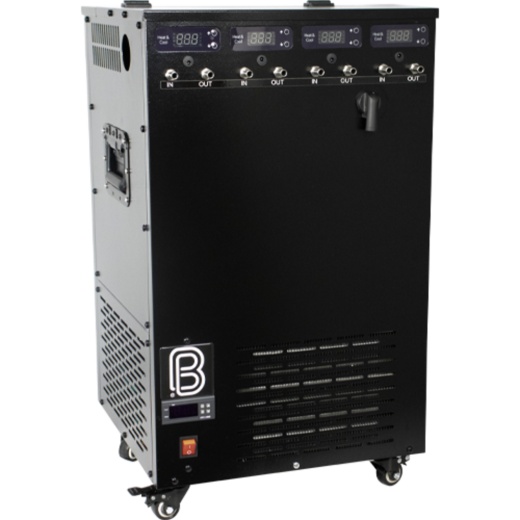

The IceMaster Max 4 is designed to cool fermentations in small vessels. It features 4 built-in submersible pumps with independent digital temperature controllers and can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. Each controller includes a temperature probe that should be inserted into a thermowell in your vessel or can be taped to the outside of the vessel if you don't have a thermowell. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster Max 4.
Compatibility
The IceMaster can be used with any fermenter that has a built-in cooling jacket, added CoolStix, or a submersed cooling coil. It works well as the cooling source for the following systems and fermenters.
- BrewBuilt Jacketed Uni Conical - we recommend one for each tank. These kits feature "dry break" quick disconnects that prevent glycol loss and the insulated tubing will increase chilling efficiency and eliminate line sweating from condensation.
- CoolStix - CoolStix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each CoolStix is available with or without a pump kit; for use with the IceMaster Max 4 you will only need the CoolStix and some tubing to connect it to the chiller.
- Ss Brewtech Fermenters and Brites - Ss BME Chronicals, BME Brites, and Unitanks come with cooling coils and neoprene as standard. The optional chilling FTSs will not be needed for use with the Max 4. The cooling coil for standard Ss Chronicals and Brew Buckets are not sold a la carte and must be purchased with a submersible pump, which is not needed for the Max 4. For standard Chronicals and Brew Buckets you might consider the for cost savings.
- Spike Conical with Optional Cooling Coil - the cooling coil for Spike CF series conicals is available for purchase independently from the TC-100 cooling system. For use with the Max 4 you will only need the coil and some tubing to connect it to the chiller.
- Speidel Tanks with Optional Cooling Jackets - You will need two lengths of tubing to connect the chiller to each tank.
- Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need two lengths of tubing for each fermenter.
- Blichmann Fermenators with Optional Cooling Coil - You will need two lengths of tubing for each Fermenator.
Capacity
It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene provides a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation.
Capacity calculated at cold crashing to a target temperature of 38°F while the ambient temperature is 75°F with neoprene insulation (double tank capacity for ale fermentation temperature control):
2 - 1BBL (31 Gallon) Jacketed Tank
2 - 1/2BBL (15-20 Gallon) Tanks
3 - 10-14 Gallon Tanks
4 - 5-7 Gallon Tanks
Set Up
In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 2 lengths of tubing per vessel. All tubing connections should be secured with hose clamps.
- Length 1: Barb of 1st bulkhead (IN) to cooling system outlet
- Length 2: Barb of 2nd bulkhead (OUT) to cooling system inlet
Specifications:
- 4 built-in submersible pumps with independent digital controllers
- Pump controllers read in °F/°C
- Temperature controller reads in °C
- Labeled IN and OUT stainless bulkheads with 3/8" OD barbs
- Tank Capacity: 30L/8 Gal. Water Capacity
- Compressor: 3/8 HP
- Cooling Capacity: 780 Watt/2600btu/0.26 ton
- Refrigerant: R134a
- Voltage: 110V (3.6 amps)
- Dimensions: 16.1" x 16.1" x 26"
- Wheels included
- CE Certified
- Max Head: 21.3 ft (6.5 m)
Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
| Item # | GLY354 |
| Shipping | |
| Availability | In Stock |
| Weight | 73 LBS |
